Products
Products and Services of Swinnus
Container Tracker

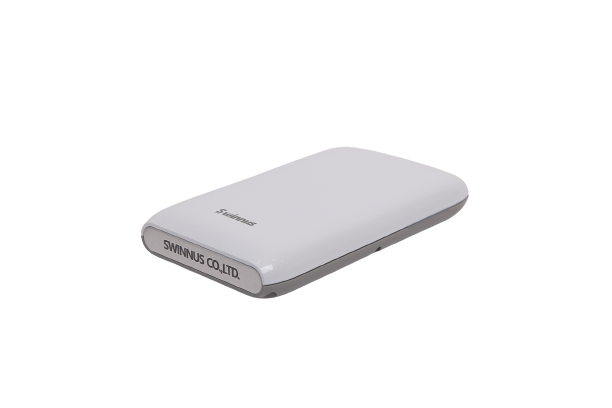

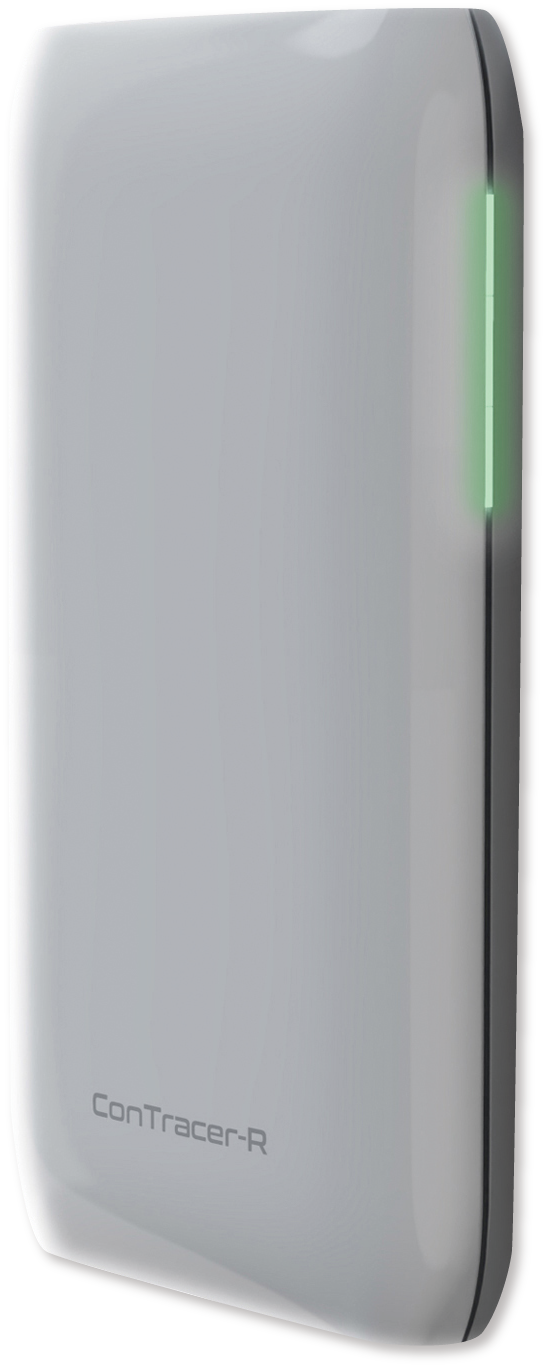

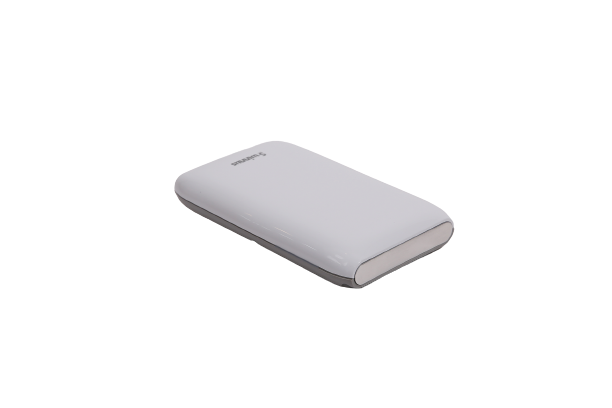

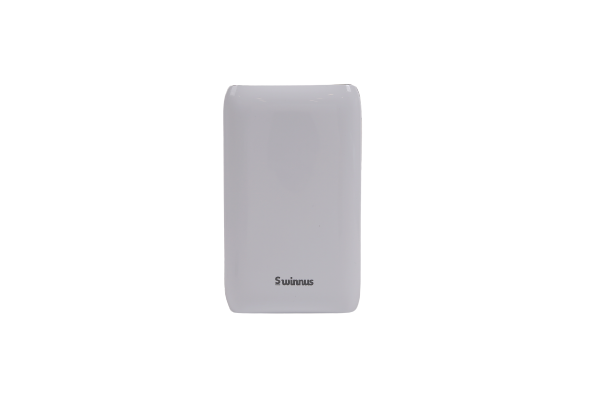

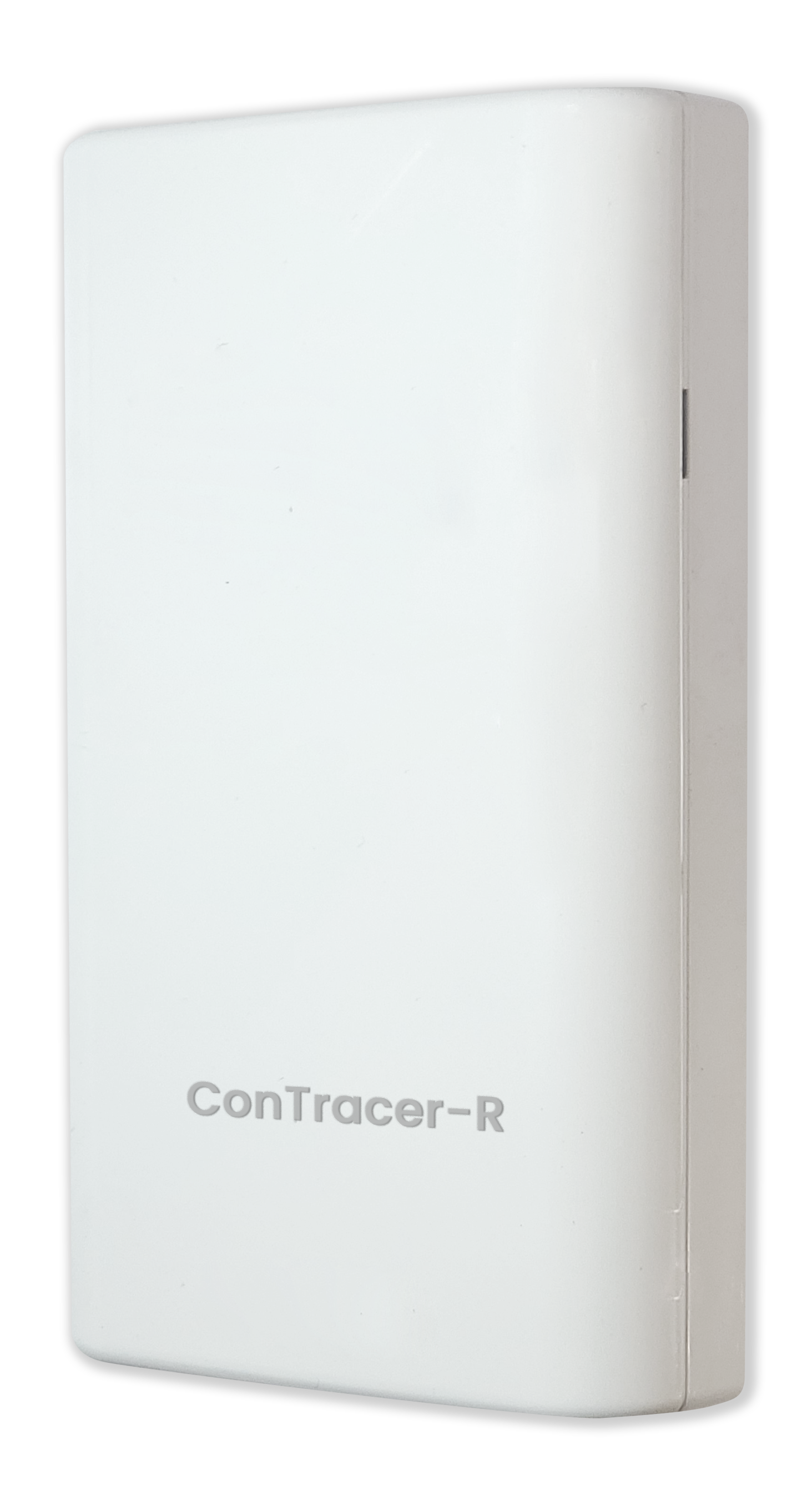

ConTracer-R
For reefer containers, it is an IoT solution that can monitor real-time location and collect and control status information.
- Check status information of reefer containers around the world and enable remote commands
- Installed integrally with the reefer container, it is resistant to theft and loss
- Real-time location and access confirmation of major points of reefer containers
Main Function
- Check status information of reefer containers around the world and provide emergency response function through remote command
- Improve visibility through real-time location confirmation of reefer containers and real-time check of major bases and accesses
- Maintain container condition and improve transportation environment by storing and managing accumulated transportation data of refrigerated containers
Special Feature
- Supports GSM/WCDMA communication functions for use in accordance with the communication environment of each country (region)
- Container power can be continuously monitored even when the container is turned off by adopting a large capacity built-in battery
- Remote update capabilities enable continuous equipment updates
- Providing real-time access recognition function for major bases using Geofence function
- Possible location of containers moving around the world based on GPS
- Possibility of loss and theft through adoption of container and integral structure
- Additional sensors can be linked via Bluetooth capabilities
Main target point
- Refurbished Container Ownership: Provides rapid response to asset management and possible cargo damage to refurbished containers, which are high-value assets worldwide
Equipment Specifications
| Classification | Details |
|---|---|
| Operating System | Firmware |
| Memory | 16MbyteFlash Memory - Log can store 36,000 non-volatile memories (providing BlackBox functionality in case of problems) |
| Mobile communication module | WCDMA/GSM/LTE support (Global real-time communication support - except in some regions) |
| Location information receipt module | Supports GPS |
| Weight | 300 grams (including batteries) |
| Battery | Lithium-Ion battery (6,000mAh) |
| Sensing Temperature | –55°C to +125°C (–67°F to +257°F) |
| Operating voltage | DC 5V, 12~24V, 2A |
| Dimension | 161 x 82 x 27mm (Length x width x height) |
| Bluetooth | Bluetooth 5.1 |
Interlocking Software Platform

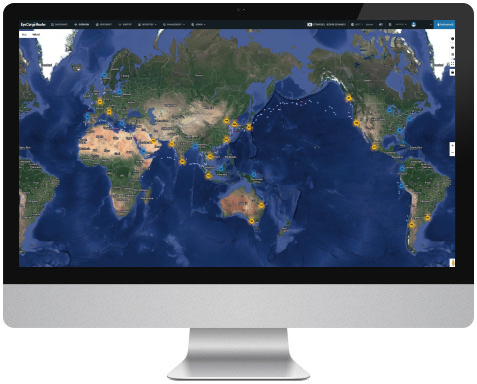

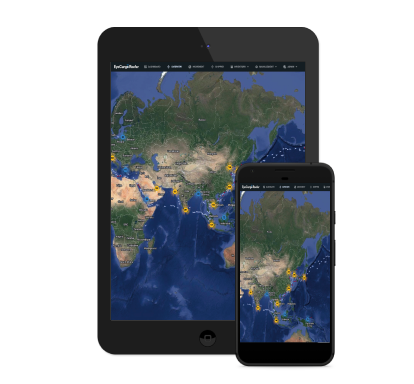

EyeCargo Reefer
