Smart Padlock

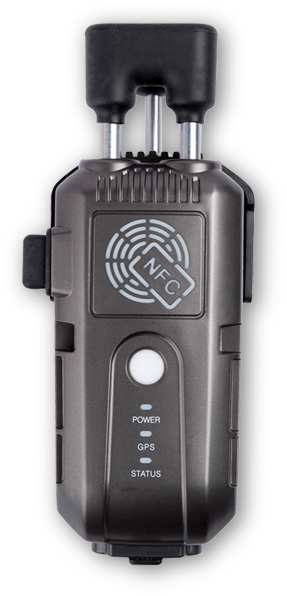

iLock+
A container security solution for real-time monitoring of container seal status and location information
- Seal release function by using an authorized NFC card
- Real-time alarm by detecting shock and illegal door opening and closing in logistics section
- Transportation section real-time control function
Main Function
- Seal status and location information monitoring and detection of various events of containers transported worldwide
- Simultaneous support of GSM & WCDMA communication for global operation
- Authorized to view equipment through NFC authentication and remote control methods
Special Feature
- Supports GSM / WCDMA communication functions to be used according to communication environment of each country (region).
- Locates containers that sail globally based on GPS
- A large-capacity battery that can be used without recharging while moving in a single logistics interval
- Remote settings of data transmission and reception information and the data retransmission function to the server
- Issue authorization to unlock container seal with NFC authentication cards
- Real-time monitoring of container seal status
- The BlackBox function by using nonvolatile memory

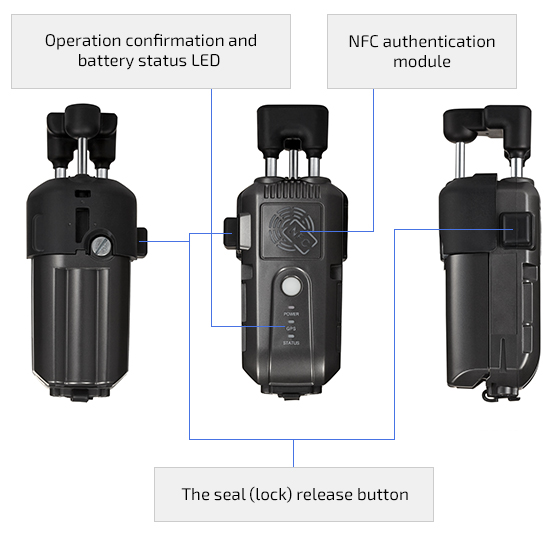

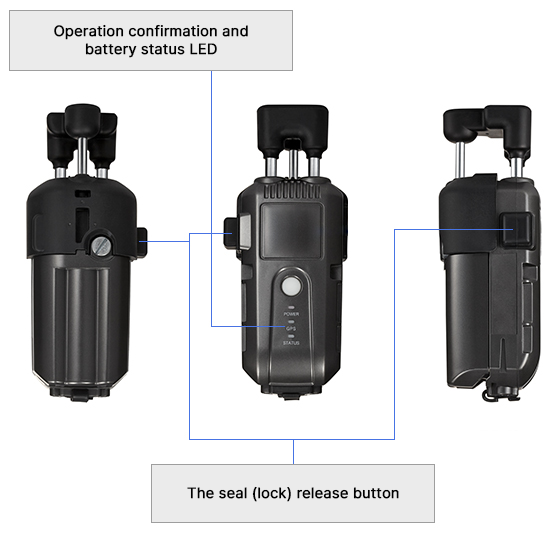

Device Description

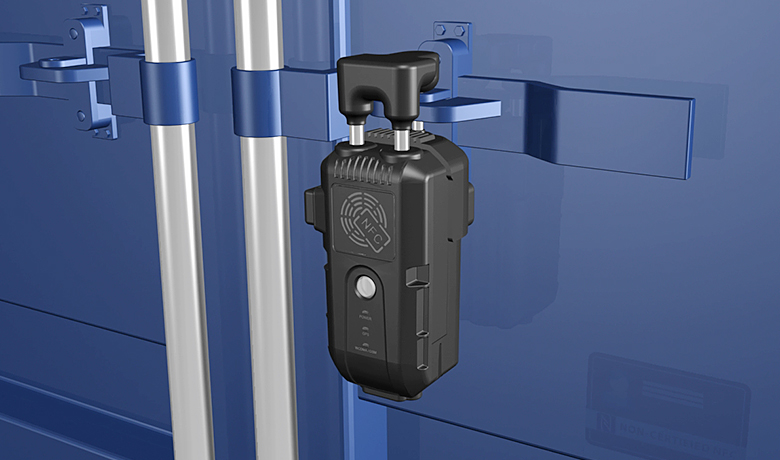

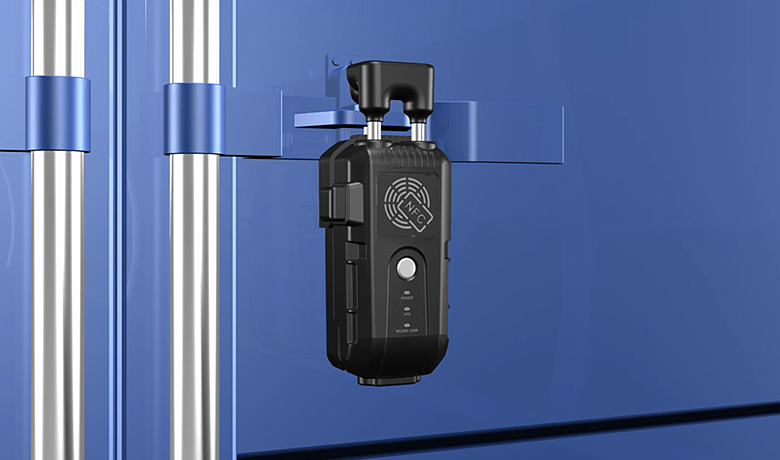

Attach to container exterior
Main target point
- Shippers handling high-end cargos in global shipping lines - Provides information on theft / impact / location / specific area entry / exit of container cargos in transit.
- Logistics companies (shipping companies and forwarders) that carry customer's cargo - Provides quality service to shippers based on logistics information with visibility.
- Customs Service - Apply a solution for protecting smuggling/trafficking that can occur during import customs clearance and bonded transportation.
Equipment Specifications
| Classification | Details |
|---|---|
| Operating System | Firmware |
| Memory | Nonvolatile memory 128Kbyte Flash Memory - stores 2,000 logs (the BlackBox function in case of problems) |
| Mobile communication module | Supports WCDMA/GSM (Global real-time communications - except for some areas) |
| Location information receipt module | Supports GPS |
| Weight | 630g (Including a battery) |
| Battery | Lithium-lon Battery (9,000mAh) |
| Operating voltage | 3.5V ~ 4.2V |
| I/O Port | USB (device setup and log check, F/W upgrade) |
| Detachable | Attachment and detachment to the existing seal tightening space outside the container |
| Dimension | 185 x 78 x 65mm (Length x width x height) |
| Battery charger | 100 ~ 240V, Rated 5.0V |
| Certification | KC, CE, RoHS, IK9, IP66, KT QAT |
Interlocking Software Platform
EyeCargo
KT GiGA Container
